Daikin equipment: compare the system, not just the badge

These manufacturer-published families are a starting point for a proposal. We confirm Canadian distributor availability, the exact model and capacity, and the equipment we recommend for your home before ordering.

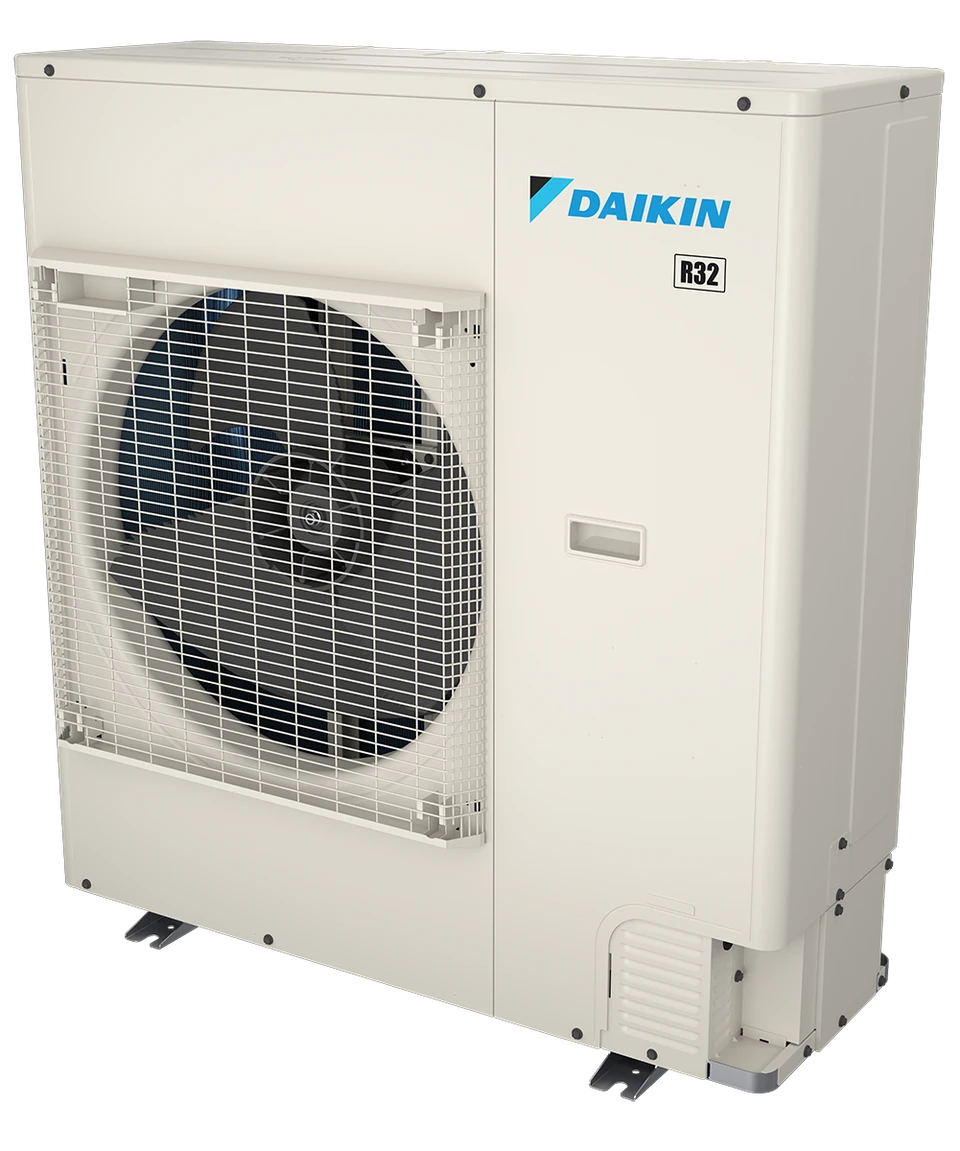

Daikin FIT DH6VS / DH7VS / DH9VS Aurora

For a Toronto side yard, Climate Experts checks the cabinet against service access, snow accumulation and the distance to neighbouring windows. We then compare the heat available from the proposed indoor and outdoor match at the home’s design temperature, so the backup heat decision follows the load calculation.

Read specifications, model data and selection notes

Published technical data
Family efficiency limits	DH6VS Up to 19 SEER2 / 8.8 HSPF2 DH7VS Up to 19 SEER2 / 8.8 HSPF2 DH9VS Up to 21 SEER2 / 10 HSPF2 Basis Family maxima for specific tested combinations; HSPF2 region is not explicitly labelled on cover. No per-model efficiency assigned.
Controls	Daikin One+ and compatible Daikin communicating indoor equipment; confirm the selected indoor/outdoor combination and controller in the installation manual. Two low-voltage wires connect the outdoor unit in communicating mode.
Limited warranty — conditions apply	Manufacturer limited coverage, not labour: listed FIT sheets describe 12-year parts and unit replacement after online registration within 60 days in Ontario; unit replacement also requires annual maintenance. Other exclusions apply; obtain the exact Canadian certificate. Quebec registration exemptions do not apply to an Ontario installation.

DH6VSA1810A

Published technical data
Model	DH6VSA1810A
Capacity	Nominal size (tons) 1.5 Cooling capacity at 95°F (BTU/h) 17100 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 12.8 Maximum overcurrent protection (A) 15 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH6VSA2410A

Published technical data
Model	DH6VSA2410A
Capacity	Nominal size (tons) 2.0 Cooling capacity at 95°F (BTU/h) 23200 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 16.8 Maximum overcurrent protection (A) 20 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH6VSA3010A

Published technical data
Model	DH6VSA3010A
Capacity	Nominal size (tons) 2.5 Cooling capacity at 95°F (BTU/h) 28400 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 22.4 Maximum overcurrent protection (A) 25 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH6VSA3610A

Published technical data
Model	DH6VSA3610A
Capacity	Nominal size (tons) 3.0 Cooling capacity at 95°F (BTU/h) 34200 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 22.4 Maximum overcurrent protection (A) 25 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH6VSA4210A

Published technical data
Model	DH6VSA4210A
Capacity	Nominal size (tons) 3.5 Cooling capacity at 95°F (BTU/h) 41000 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 31.8 Maximum overcurrent protection (A) 35 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH6VSA4810A

Published technical data
Model	DH6VSA4810A
Capacity	Nominal size (tons) 4.0 Cooling capacity at 95°F (BTU/h) 45500 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 31.8 Maximum overcurrent protection (A) 35 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH6VSA6010A

Published technical data
Model	DH6VSA6010A
Capacity	Nominal size (tons) 5.0 Cooling capacity at 95°F (BTU/h) 53500 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 37.5 Maximum overcurrent protection (A) 40 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH7VSA2410A

Published technical data
Model	DH7VSA2410A
Capacity	Nominal size (tons) 2.0 Cooling capacity at 95°F (BTU/h) 23200 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 27-3/8 × 36-5/8 × 13-3/4
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 22.4 Maximum overcurrent protection (A) 25 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH7VSA3610A

Published technical data
Model	DH7VSA3610A
Capacity	Nominal size (tons) 3.0 Cooling capacity at 95°F (BTU/h) 35000 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 39 × 37 × 12-5/8
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 31.8 Maximum overcurrent protection (A) 35 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH7VSA4210A

Published technical data
Model	DH7VSA4210A
Capacity	Nominal size (tons) 3.5 Cooling capacity at 95°F (BTU/h) 41000 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 39 × 37 × 12-5/8
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 37.5 Maximum overcurrent protection (A) 40 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH7VSA4810A

Published technical data
Model	DH7VSA4810A
Capacity	Nominal size (tons) 4.0 Cooling capacity at 95°F (BTU/h) 46500 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 39 × 37 × 12-5/8
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 37.5 Maximum overcurrent protection (A) 40 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH7VSA6010A

Published technical data
Model	DH7VSA6010A
Capacity	Nominal size (tons) 5.0 Cooling capacity at 95°F (BTU/h) 52000 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 56-5/16 × 37 × 12-5/8
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 34.4 Maximum overcurrent protection (A) 40 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH9VSA241CA

Published technical data
Model	DH9VSA241CA
Capacity	Nominal size (tons) 2.0 Cooling capacity at 95°F (BTU/h) 24000 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 56-5/16 × 37 × 12-5/8
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 17.4 Maximum overcurrent protection (A) 20 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DH9VSA361CA

Published technical data
Model	DH9VSA361CA
Capacity	Nominal size (tons) 3.0 Cooling capacity at 95°F (BTU/h) 34200 Basis Outdoor product specification, AHRI 210/240; exact indoor match still required for system performance.
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 56-5/16 × 37 × 12-5/8
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 21.8 Maximum overcurrent protection (A) 25 Scope Outdoor only; verify unit rating plate.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

Manufacturer documentation reviewed October 20, 2026. Exact Canadian availability, production suffix and installation requirements are confirmed with your proposal.

Discuss Daikin FIT DH6VS / DH7VS / DH9VS Aurora with Climate Experts

Daikin FIT DC6VS air conditioner

Climate Experts considers FIT cooling when a narrow equipment location makes a conventional outdoor unit awkward. Our proposal pairs the condenser with the coil and blower that establish its rating, then checks airflow, drain routing and the sound expected at the nearby property line.

Read specifications, model data and selection notes

Published technical data
Family efficiency limits	Up to 17.2 SEER2; a family ceiling, not a rating for every model. Exact AHRI indoor match required.
Controls	Daikin One+ and compatible Daikin communicating indoor equipment; confirm the selected indoor/outdoor combination and controller in the installation manual. Two low-voltage wires connect the outdoor unit in communicating mode.
Model id note	Asterisk is the published revision wildcard, not an orderable serial number. Page 3 shortens the 5T prefix while page 39 dimensions explicitly shows DC6VSS6010A*; verify the complete ordered suffix. The document also covers DC6VSA…WA alternatives; no Ontario availability inferred.
Limited warranty — conditions apply	Manufacturer limited coverage, not labour: listed FIT sheets describe 12-year parts and unit replacement after online registration within 60 days in Ontario; unit replacement also requires annual maintenance. Other exclusions apply; obtain the exact Canadian certificate. Quebec registration exemptions do not apply to an Ontario installation.

DC6VSS1810A*

Published technical data
Model	DC6VSS1810A*
Capacity	Nominal size (tons) 1.5 Max cooling BTU/h 17100
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 27-3/8 × 36-5/8 × 13-3/4
Sound	Pressure dBA at 3ft zero reflective surfaces 54 Basis Cooling standard mode, AHRI 275; this is not quiet-mode sound power.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 12.8 Maximum overcurrent protection (A) 15
Cold weather capacity	Not applicable: cooling-only air conditioner.

DC6VSS2410A*

Published technical data
Model	DC6VSS2410A*
Capacity	Nominal size (tons) 2.0 Max cooling BTU/h 23200
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 27-3/8 × 36-5/8 × 13-3/4
Sound	Pressure dBA at 3ft zero reflective surfaces 57 Basis Cooling standard mode, AHRI 275; this is not quiet-mode sound power.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 16.8 Maximum overcurrent protection (A) 20
Cold weather capacity	Not applicable: cooling-only air conditioner.

DC6VSS3010A*

Published technical data
Model	DC6VSS3010A*
Capacity	Nominal size (tons) 2.5 Max cooling BTU/h 28400
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 27-3/8 × 36-5/8 × 13-3/4
Sound	Pressure dBA at 3ft zero reflective surfaces 60 Basis Cooling standard mode, AHRI 275; this is not quiet-mode sound power.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 22.4 Maximum overcurrent protection (A) 25
Cold weather capacity	Not applicable: cooling-only air conditioner.

DC6VSS3610A*

Published technical data
Model	DC6VSS3610A*
Capacity	Nominal size (tons) 3.0 Max cooling BTU/h 34200
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 27-3/8 × 36-5/8 × 13-3/4
Sound	Pressure dBA at 3ft zero reflective surfaces 61 Basis Cooling standard mode, AHRI 275; this is not quiet-mode sound power.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 22.4 Maximum overcurrent protection (A) 25
Cold weather capacity	Not applicable: cooling-only air conditioner.

DC6VSS4210A*

Published technical data
Model	DC6VSS4210A*
Capacity	Nominal size (tons) 3.5 Max cooling BTU/h 41000
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 39 × 37 × 12-5/8
Sound	Pressure dBA at 3ft zero reflective surfaces 64 Basis Cooling standard mode, AHRI 275; this is not quiet-mode sound power.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 31.8 Maximum overcurrent protection (A) 35
Cold weather capacity	Not applicable: cooling-only air conditioner.

DC6VSS4810A*

Published technical data
Model	DC6VSS4810A*
Capacity	Nominal size (tons) 4.0 Max cooling BTU/h 45500
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 39 × 37 × 12-5/8
Sound	Pressure dBA at 3ft zero reflective surfaces 65 Basis Cooling standard mode, AHRI 275; this is not quiet-mode sound power.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 31.8 Maximum overcurrent protection (A) 35
Cold weather capacity	Not applicable: cooling-only air conditioner.

DC6VSS6010A*

Published technical data
Model	DC6VSS6010A*
Capacity	Nominal size (tons) 5.0 Max cooling BTU/h 53500
Efficiency	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 39 × 37 × 12-5/8
Sound	Pressure dBA at 3ft zero reflective surfaces 66 Basis Cooling standard mode, AHRI 275; this is not quiet-mode sound power.
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 37.5 Maximum overcurrent protection (A) 40
Cold weather capacity	Not applicable: cooling-only air conditioner.

Manufacturer documentation reviewed October 20, 2026. Exact Canadian availability, production suffix and installation requirements are confirmed with your proposal.

Discuss Daikin FIT DC6VS air conditioner with Climate Experts

DR97MC / DR96TC / DR96TN furnaces

When replacing a Durham furnace, Climate Experts measures the heat requirement and checks return air, venting and available installation space before selecting a cabinet. We explain how the modulating DR97MC, communicating two-stage DR96TC and nine-speed two-stage DR96TN affect operation and the controls included in the quote.

Read specifications, model data and selection notes

Published technical data
Controls	DR97MC and DR96TC are communicating variable-speed families. DR96TN uses a two-stage gas valve and nine-speed ECM. Exact thermostat wiring and matched FIT capability must follow the selected installation manual.
Limited warranty — conditions apply	Ontario product pages describe lifetime heat exchanger, 12-year parts and six-year unit replacement with registration within 60 days; annual maintenance conditions apply to replacement. Verify the exact Canadian certificate; labour is separate.

DR97MC0603BN

Published technical data
Model	DR97MC0603BN
Capacity	High fire input BTU/h 60000 High fire output BTU/h 58200 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 8.1 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR97MC0803BN

Published technical data
Model	DR97MC0803BN
Capacity	High fire input BTU/h 80000 High fire output BTU/h 77600 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 8.1 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR97MC0804CN

Published technical data
Model	DR97MC0804CN
Capacity	High fire input BTU/h 80000 High fire output BTU/h 77600 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 11.4 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR97MC1005CN

Published technical data
Model	DR97MC1005CN
Capacity	High fire input BTU/h 100000 High fire output BTU/h 97000 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 14.4 Maximum overcurrent protection (A) 25
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR97MC1205DN

Published technical data
Model	DR97MC1205DN
Capacity	High fire input BTU/h 120000 High fire output BTU/h 116400 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 14.4 Maximum overcurrent protection (A) 25
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TC0403BN

Published technical data
Model	DR96TC0403BN
Capacity	High fire input BTU/h 40000 High fire output BTU/h 39000 Fuel Natural gas
Efficiency	AFUE (%) 97.5 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 7.5 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TC0603BN

Published technical data
Model	DR96TC0603BN
Capacity	High fire input BTU/h 60000 High fire output BTU/h 58200 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 7.5 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TC0803BN

Published technical data
Model	DR96TC0803BN
Capacity	High fire input BTU/h 80000 High fire output BTU/h 76880 Fuel Natural gas
Efficiency	AFUE (%) 96.1 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 7.5 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TC0804CN

Published technical data
Model	DR96TC0804CN
Capacity	High fire input BTU/h 80000 High fire output BTU/h 77600 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 10.8 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TC1005CN

Published technical data
Model	DR96TC1005CN
Capacity	High fire input BTU/h 100000 High fire output BTU/h 96100 Fuel Natural gas
Efficiency	AFUE (%) 96.1 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 13.8 Maximum overcurrent protection (A) 20
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TC1005DN

Published technical data
Model	DR96TC1005DN
Capacity	High fire input BTU/h 100000 High fire output BTU/h 97500 Fuel Natural gas
Efficiency	AFUE (%) 97.5 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 13.8 Maximum overcurrent protection (A) 20
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TC1205DN

Published technical data
Model	DR96TC1205DN
Capacity	High fire input BTU/h 120000 High fire output BTU/h 115320 Fuel Natural gas
Efficiency	AFUE (%) 96.1 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 13.8 Maximum overcurrent protection (A) 20
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN0303AN

Published technical data
Model	DR96TN0303AN
Capacity	High fire input BTU/h 30000 High fire output BTU/h 29100 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 7.8 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN0403AN

Published technical data
Model	DR96TN0403AN
Capacity	High fire input BTU/h 40000 High fire output BTU/h 38800 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 7.8 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN0603AN

Published technical data
Model	DR96TN0603AN
Capacity	High fire input BTU/h 60000 High fire output BTU/h 57660 Fuel Natural gas
Efficiency	AFUE (%) 96.1 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 7.8 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN0603BN

Published technical data
Model	DR96TN0603BN
Capacity	High fire input BTU/h 60000 High fire output BTU/h 58200 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 7.7 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN0803BN

Published technical data
Model	DR96TN0803BN
Capacity	High fire input BTU/h 80000 High fire output BTU/h 76880 Fuel Natural gas
Efficiency	AFUE (%) 96.1 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 7.7 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN0804CN

Published technical data
Model	DR96TN0804CN
Capacity	High fire input BTU/h 80000 High fire output BTU/h 77600 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 11.3 Maximum overcurrent protection (A) 15
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN1004CN

Published technical data
Model	DR96TN1004CN
Capacity	High fire input BTU/h 100000 High fire output BTU/h 97000 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 14.3 Maximum overcurrent protection (A) 25
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN1005CN

Published technical data
Model	DR96TN1005CN
Capacity	High fire input BTU/h 100000 High fire output BTU/h 97000 Fuel Natural gas
Efficiency	AFUE (%) 97 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 14.3 Maximum overcurrent protection (A) 25
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

DR96TN1205DN

Published technical data
Model	DR96TN1205DN
Capacity	High fire input BTU/h 120000 High fire output BTU/h 115320 Fuel Natural gas
Efficiency	AFUE (%) 96.1 Basis DOE AFUE, Isolated Combustion System (ICS)
Refrigerant	Not applicable to gas furnace itself; separate coil may contain refrigerant.
Dimensions — retain the stated order	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 115 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 14.3 Maximum overcurrent protection (A) 25
Cold weather capacity	Not a heat-pump temperature rating; gas input derating and installation conditions apply.

Manufacturer documentation reviewed October 20, 2026. Exact Canadian availability, production suffix and installation requirements are confirmed with your proposal.

Discuss DR97MC / DR96TC / DR96TN furnaces with Climate Experts

ATMOSPHERA ductless

For an addition or upstairs room, Climate Experts assesses a single ATMOSPHERA zone around the room’s own load and the direction of its airflow. We plan a drain route that can be maintained and a pipe path that fits the building, then identify whether the proposed system supplements existing heat or carries the room through winter.

Read specifications, model data and selection notes

Published technical data
Controls	Ontario product page lists built-in Wi-Fi with Daikin Comfort Control App; exact wired/remote controller accessories require the selected manual.
Limited warranty — conditions apply	Ductless warranty differs from FIT. Ontario page lists 12-year limited parts, conditional registration within 60 days; obtain the ATMOSPHERA-specific Canadian warranty. Do not import FIT unit-replacement coverage.

FTXM09WVJU9 / RXM09WVJU9

Published technical data
Model	FTXM09WVJU9 / RXM09WVJU9
Capacity	Rated cooling BTU/h 9000 Rated heating BTU/h at 47F 11000 Basis Cooling indoor 80°F DB/67°F WB, outdoor 95°F DB/75°F WB; heating indoor 70°F DB/60°F WB, outdoor 47°F DB/43°F WB; 25-ft piping.
Efficiency	SEER2 27.4 HSPF2 11.2 EER2 16.3 Region HSPF2 region not explicitly labelled in reviewed table.
Refrigerant	R-32
Dimensions — retain the stated order	Indoor H W D mm 299 × 920 × 275 Outdoor H W D mm 595 × 845 × 300
Sound	Indoor cooling pressure dBA H M L SL 43 33 25 22 Outdoor cooling pressure dBA H 47
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) Unavailable: not verified for this exact model/matched system in the reviewed sources. Maximum overcurrent protection (A) Unavailable: not verified for this exact model/matched system in the reviewed sources.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

FTXM12WVJU9 / RXM12WVJU9

Published technical data
Model	FTXM12WVJU9 / RXM12WVJU9
Capacity	Rated cooling BTU/h 12000 Rated heating BTU/h at 47F 13600 Basis Cooling indoor 80°F DB/67°F WB, outdoor 95°F DB/75°F WB; heating indoor 70°F DB/60°F WB, outdoor 47°F DB/43°F WB; 25-ft piping.
Efficiency	SEER2 25.2 HSPF2 10.7 EER2 13.2 Region HSPF2 region not explicitly labelled in reviewed table.
Refrigerant	R-32
Dimensions — retain the stated order	Indoor H W D mm 299 × 920 × 275 Outdoor H W D mm 595 × 845 × 300
Sound	Indoor cooling pressure dBA H M L SL 45 37 29 23 Outdoor cooling pressure dBA H 49
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) Unavailable: not verified for this exact model/matched system in the reviewed sources. Maximum overcurrent protection (A) Unavailable: not verified for this exact model/matched system in the reviewed sources.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

FTXM18WVJU9 / RXM18WVJU9

Published technical data
Model	FTXM18WVJU9 / RXM18WVJU9
Capacity	Rated cooling BTU/h 18000 Rated heating BTU/h at 47F 21600 Basis Cooling indoor 80°F DB/67°F WB, outdoor 95°F DB/75°F WB; heating indoor 70°F DB/60°F WB, outdoor 47°F DB/43°F WB; 25-ft piping.
Efficiency	SEER2 22.7 HSPF2 10 EER2 12.5 Region HSPF2 region not explicitly labelled in reviewed table.
Refrigerant	R-32
Dimensions — retain the stated order	Indoor H W D mm 299 × 1100 × 275 Outdoor H W D mm 735 × 870 × 320
Sound	Indoor cooling pressure dBA H M L SL 49 41 36 33 Outdoor cooling pressure dBA H 54
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) Unavailable: not verified for this exact model/matched system in the reviewed sources. Maximum overcurrent protection (A) Unavailable: not verified for this exact model/matched system in the reviewed sources.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

FTXM24WVJU9 / RXM24WVJU9

Published technical data
Model	FTXM24WVJU9 / RXM24WVJU9
Capacity	Rated cooling BTU/h 21600 Rated heating BTU/h at 47F 24000 Basis Cooling indoor 80°F DB/67°F WB, outdoor 95°F DB/75°F WB; heating indoor 70°F DB/60°F WB, outdoor 47°F DB/43°F WB; 25-ft piping.
Efficiency	SEER2 22 HSPF2 10 EER2 12 Region HSPF2 region not explicitly labelled in reviewed table.
Refrigerant	R-32
Dimensions — retain the stated order	Indoor H W D mm 299 × 1100 × 275 Outdoor H W D mm 735 × 870 × 320
Sound	Indoor cooling pressure dBA H M L SL 51 44 37 34 Outdoor cooling pressure dBA H 55
Electrical	Voltage (V) 208–230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) Unavailable: not verified for this exact model/matched system in the reviewed sources. Maximum overcurrent protection (A) Unavailable: not verified for this exact model/matched system in the reviewed sources.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

Manufacturer documentation reviewed October 20, 2026. Exact Canadian availability, production suffix and installation requirements are confirmed with your proposal.

Discuss ATMOSPHERA ductless with Climate Experts

DFVE R-32 air handler

In an all-electric conversion, Climate Experts checks the DFVE blower against the duct pressure and the space available for service. We identify the outdoor match and any accessory electric heater separately, because the backup heat choice changes both the electrical work and the winter heating plan.

Read specifications, model data and selection notes

Published technical data
Controls	Daikin One+ and compatible Daikin communicating indoor equipment; confirm the selected indoor/outdoor combination and controller in the installation manual. Two low-voltage wires connect the outdoor unit in communicating mode.
Limited warranty — conditions apply	Current sheet describes 12-year parts after Ontario registration within 60 days; obtain exact certificate. Air handler has no gas heat exchanger: do not reuse furnace heat-exchanger warranty text.

DFVE24BP1300

Published technical data
Model	DFVE24BP1300
Capacity	Nominal size (tons) 2 Scope Air-handler nominal size; not a complete system rating.
Efficiency	No standalone SEER2/HSPF2. Requires matched outdoor unit.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 45 × 17-1/2 × 21 Basis Page 4 drawing: A height, C cabinet width, side-view 21-inch cabinet depth; excludes projections.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208/230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 4.9 Maximum overcurrent protection (A) 15 Scope Base air handler without field-installed heater. Heater kits change circuit requirements.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DFVE36CP1300

Published technical data
Model	DFVE36CP1300
Capacity	Nominal size (tons) 3 Scope Air-handler nominal size; not a complete system rating.
Efficiency	No standalone SEER2/HSPF2. Requires matched outdoor unit.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 53-7/16 × 21 × 21 Basis Page 4 drawing: A height, C cabinet width, side-view 21-inch cabinet depth; excludes projections.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208/230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 6.5 Maximum overcurrent protection (A) 15 Scope Base air handler without field-installed heater. Heater kits change circuit requirements.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DFVE42CP1300

Published technical data
Model	DFVE42CP1300
Capacity	Nominal size (tons) 3.5 Scope Air-handler nominal size; not a complete system rating.
Efficiency	No standalone SEER2/HSPF2. Requires matched outdoor unit.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 53-7/16 × 21 × 21 Basis Page 4 drawing: A height, C cabinet width, side-view 21-inch cabinet depth; excludes projections.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208/230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 6.5 Maximum overcurrent protection (A) 15 Scope Base air handler without field-installed heater. Heater kits change circuit requirements.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DFVE48CP1300

Published technical data
Model	DFVE48CP1300
Capacity	Nominal size (tons) 4 Scope Air-handler nominal size; not a complete system rating.
Efficiency	No standalone SEER2/HSPF2. Requires matched outdoor unit.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 58 × 21 × 21 Basis Page 4 drawing: A height, C cabinet width, side-view 21-inch cabinet depth; excludes projections.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208/230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 6.5 Maximum overcurrent protection (A) 15 Scope Base air handler without field-installed heater. Heater kits change circuit requirements.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DFVE48DP1300

Published technical data
Model	DFVE48DP1300
Capacity	Nominal size (tons) 4 Scope Air-handler nominal size; not a complete system rating.
Efficiency	No standalone SEER2/HSPF2. Requires matched outdoor unit.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 53-7/16 × 24-1/2 × 21 Basis Page 4 drawing: A height, C cabinet width, side-view 21-inch cabinet depth; excludes projections.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208/230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 6.5 Maximum overcurrent protection (A) 15 Scope Base air handler without field-installed heater. Heater kits change circuit requirements.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

DFVE60DP1300

Published technical data
Model	DFVE60DP1300
Capacity	Nominal size (tons) 5 Scope Air-handler nominal size; not a complete system rating.
Efficiency	No standalone SEER2/HSPF2. Requires matched outdoor unit.
Refrigerant	R-32
Dimensions — retain the stated order	H W D (inches) 58 × 24-1/2 × 21 Basis Page 4 drawing: A height, C cabinet width, side-view 21-inch cabinet depth; excludes projections.
Sound	Unavailable: not verified for this exact model/matched system in the reviewed sources.
Electrical	Voltage (V) 208/230 Phase 1 Frequency (Hz) 60 Minimum circuit ampacity (A) 8.6 Maximum overcurrent protection (A) 15 Scope Base air handler without field-installed heater. Heater kits change circuit requirements.
Cold weather capacity	Unavailable: not verified for this exact model/matched system in the reviewed sources.

Manufacturer documentation reviewed October 20, 2026. Exact Canadian availability, production suffix and installation requirements are confirmed with your proposal.

Discuss DFVE R-32 air handler with Climate Experts

Maximum efficiency ratings apply to specific tested combinations. Your proposal identifies the matched indoor and outdoor equipment; an operating-temperature limit does not guarantee full heating capacity at that temperature.

Choosing Daikin for your home

Daikin FIT is particularly useful when outdoor space matters. In Toronto side yards, additions and renovations, the equipment location needs to work with access, windows, snow and neighbouring properties. We plan the indoor and outdoor equipment together, rather than choosing a condenser first and trying to make the rest fit afterward.

A Daikin furnace and FIT heat pump can form a dual-fuel system; an appropriate air handler can support an all-electric design. Ductless equipment addresses a different need: room-by-room heating and cooling where adding full ductwork would be disruptive. We compare those approaches with your existing boiler or furnace, room layout, electrical capacity and comfort goals.

Before equipment is ordered

We review the heating and cooling requirements, installation access and service space. The written proposal names the equipment, controls and agreed work.

When the installation is complete

We commission the system, explain the controls and maintenance, and document the applicable registration and warranty details.

Daikin warranty: parts, equipment and labour

Coverage depends on the exact equipment, Canadian certificate, installation and registration. Parts, heat exchangers, equipment replacement and labour are separate benefits. Read the family-specific terms above; our written proposal identifies the coverage for your selected system.

Current Daikin offers and rebate planning

Canadian Daikin FIT instant rebates

For eligible complete R-32 FIT systems purchased October 1–December 31, 2026: DH9VS (Aurora), $1,400 CAD; DH7VS, $1,050 CAD; DC6VS / DH6VS, $700 CAD.

Available through participating Daikin Comfort Pros. A qualifying complete system and controller are required. Cannot be combined with other offers, discounts or promotions. Confirm our participation and your equipment’s eligibility before purchase.

Have us confirm the offer and eligibility

For heat-pump projects, review Ontario rebate planning before purchase. Program eligibility is separate from a manufacturer promotion.

Manufacturer information checked October 5, 2026.

Your Daikin system, supported by a local team

Pickering roots. Toronto and Durham service.

Climate Experts was founded by Cody Johnson in 2012. Cody brings 20 years of HVAC experience, with G2, 313D and 308R licences. Our shop is at Unit 13, 905 Dillingham Rd, Pickering. Office hours are Monday–Friday, 8 a.m.–5 p.m., with emergency service evenings and weekends.

Explore our team, our work and customer reviews.

Equipment information from your local team

Stay with Climate Experts while you compare the equipment. We explain the proposed models, installation scope and maintenance, and provide the applicable product and warranty documents for your selected system.

Speak with our local Daikin team

Daikin heat-pump installation
Ductless design and installation
All-electric heating

Daikin questions homeowners ask

Is Daikin FIT suitable for a narrow Toronto side yard?

Its compact side-discharge design is useful where a traditional outdoor unit is bulky. We still check the exact manufacturer clearances, snow exposure, windows, service access and neighbouring property before selecting the location.

Should I choose a FIT heat pump or FIT air conditioner?

A heat pump provides heating as well as cooling. A FIT air conditioner provides cooling while the furnace handles heating. We compare your fuel choices, electrical capacity and winter heating needs.

Does every FIT system qualify for the advertised rebate?

No. The current manufacturer offer applies to eligible complete R-32 FIT systems through participating Comfort Pros. The model combination, purchase date and participation must be checked before the rebate is included in your quote.

Can I control the system remotely?

Compatible Daikin One controls offer connected operation. We explain thermostat compatibility and any optional remote monitoring or dealer diagnostic access before setup.

What is included in a Daikin installation quote?

The quote identifies the selected equipment and controls, installation scope, applicable warranty and any confirmed rebates. Tell us about comfort problems, planned renovations and access restrictions so those needs can be assessed before the scope is agreed.

Can you maintain my Daikin system after installation?

Contact our Pickering service team for maintenance planning. The visit and schedule depend on the equipment, its condition and the manufacturer’s requirements. Maintenance 365 options can be reviewed with the specific systems you want covered.

Talk to a Climate Expert about Daikin

Tell us where you live, what equipment you have and what you want to improve. We will discuss the assessment and system options for your home.

Request a quote

Call 905-492-7171
